Conventional aluminum composite plate
产品详情 / Detail

As a new decorative material, aluminum-plastic composite board (also known as aluminum-plastic board) is rapidly favored by people because of its economy, diversity of optional colors, convenient construction methods, excellent processing performance, excellent fire resistance and noble quality.

The unique performance of aluminum-plastic composite board itself determines its wide application: it can be used for building exterior wall, curtain wall board, reconstruction and renovation of old buildings, indoor wall and ceiling decoration, advertising signs, display stand, purification and dust prevention projects.

Hanbert aluminum plastic board is light, easy to achieve complex shape effects and easy to install, which can easily achieve your architectural effects. Hanbert aluminum plastic plate also has excellent flatness, weather resistance, stability and easy maintenance.

Hanbert aluminum plastic board can be processed with ordinary woodworking or metal processing tools without special tools. It can easily perform cutting, slotting, stamping, drilling, bending, rolling and many other processes, so the processing of aluminum clad plate is almost unlimited and can be processed into various complex shapes.



Product advantages and features:

1. Good weather resistance, high strength and easy maintenance;

2. Convenient construction and short construction period;

3. Excellent processability, heat insulation, sound insulation and excellent fire resistance;

4. Good plasticity, impact resistance, can reduce building load, and good shockproof;

5. Good flatness, light and firm;

6. Many colors to choose from;

7. The processing machines and tools are simple and can be processed on site;

8. Patterns and patterns can be customized.



Standard specification:

1220 * 2440 * 3mm (w * L * t)

1220 * 2440 * 4mm (w * L * t)

Non standard size:

Plate thickness: 2mm, 5mm, 6mm

Width: 1000mm, 1250mm, 1500mm, 1550mm, 2000mm

Core layer: class B2, FR, HFR, A2

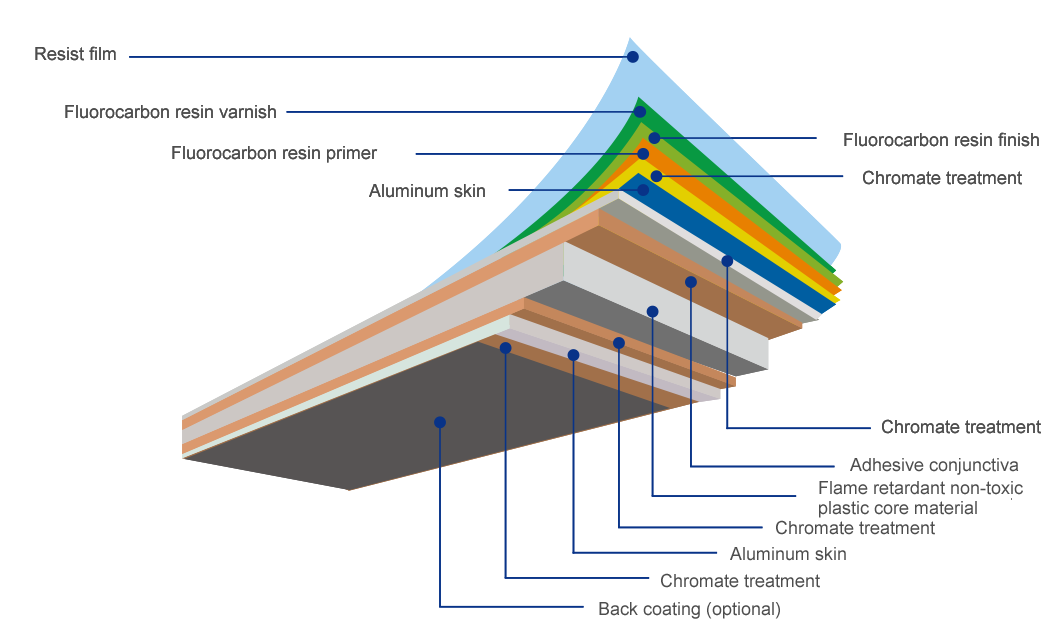

Physical drawing of aluminum plastic plate:



Classification of conventional aluminum plastic plate:

According to the surface coating of aluminum-plastic plate, it is divided into the following four categories:

① Fluorocarbon coated aluminum plastic plate

② Polyester coated aluminum plastic plate

③ Wood and stone grain aluminum plastic board

④ Gold and silver brushed aluminum plastic plate



A. Fluorocarbon coated aluminum plastic plate

Fluorocarbon paint refers to the coating with fluororesin as the main film-forming material; Also known as fluorocarbon paint, fluorocarbon paint, fluororesin paint, etc. Among all kinds of coatings, fluororesin coatings have particularly superior properties because of the large electronegativity of fluorine and strong carbon fluorine bond energy. Weather resistance, heat resistance, low temperature resistance, chemical resistance, and unique non viscosity and low friction. After decades of rapid development, fluorine coatings have been widely used in various fields such as construction, chemical industry, electrical and electronic industry, machinery industry, aerospace industry and household products.

As the fluorocarbon paint of PVDF based on kynar-500 has unique advantages in weather resistance, it will not damage the beautiful appearance in hot sunshine or cold wind and snow, and will not fade for 20 years.



B. Polyester coated aluminum plastic plate

Polyester paint is also called unsaturated polyester paint. It is a multi-component paint. It is a thick paint made of polyester resin as the main film-forming material. The film of polyester paint is plump, the layer is thick and the surface is hard.

Polyester aluminum-plastic board has many advantages. It not only has rich colors, but also has a large paint film thickness. It can be sprayed two or three times, and can completely cover the base material. The requirements for the base material are not high. The comprehensive performance of polyester paint film is excellent. Due to the use of curing agent, the film has higher hardness, hardness, wear resistance, high richness, resistance to damp heat, dry heat, acid-base oil, solvent and a variety of chemicals, and high insulation.




C. Wood and stone grain aluminum plastic board

Wood and stone grain aluminum plastic aluminum plate integrates all the advantages of new aluminum plate, which not only realizes the realistic effect of wood and stone grain, but also has the advantages of light weight, convenient construction and smooth surface. Wood and stone grain aluminum-plastic boards abandon the shortcomings of PET film and easy falling off in the past, and directly use fluorocarbon polyester coating, so as to break the bottleneck that can only be used for indoor decoration in the past and prolong the service life of wood and stone grain aluminum-plastic boards.





D. Gold and silver brushed aluminum plastic plate

Metal wire drawing is a manufacturing process of repeatedly scraping aluminum plates out of lines with sandpaper. Its main process is divided into three parts: deasterification, sanding mill and water washing. In the wire drawing process, the special film technology after anodic treatment can generate a film layer containing the metal component on the metal surface, clearly show each fine wire mark, and make the metal matte with fine hair luster. In recent years, metal wire drawing technology has been used in the metal shell of more and more products to play the role of beauty and corrosion resistance. Make the products have both fashion and technology elements.




E. Color coated aluminum plastic plate

The aluminum-plastic plate with magic color coating is named for its changeable color on the surface. Its decorative surface is coated with a special high gloss coating, which has a flat and smooth touch, has a gorgeous and soft color like metal, and makes full use of the reflection, refraction and diffraction between light and matter to create wonderful colors in nature, Thus, the decorative complexion can present completely different colors with the change of light source and viewing angle.
