Three dimensional aluminum composite plate
产品详情 / Detail

Three dimensional aluminum composite plate, also known as aluminum core composite plate, is an improved honeycomb plate. It is made of all aluminum, without plastic composition, 100% environmental protection, and the fire rating reaches A2. Like the traditional aluminum-plastic plate, it has high flatness, rich colors and easy processing characteristics. The products are suitable for ceiling, box materials, cabinets, wardrobe, exterior wall and interior decoration.

The three-dimensional aluminum composite plate is continuously compounded under high temperature and high pressure, which is the same as the traditional aluminum composite plate (ACP), and is roller coated with PVDF coating supplied by PPG; Excellent surface smoothness and high-quality fluorocarbon provide better climate resistance and pollution resistance for buildings.




Raw material:

Product composition

First layer: PVDF coating

Second layer: 0.7mm aluminum sheet

Layer 3: polymer adhesive film

Fourth layer: 3mm corrugated aluminum core

Layer 5: polymer adhesive film

Sixth layer: 0.5mm aluminum sheet

Layer 7: Polyester back coating




Standard specification:

Plate width: 1250mm, 1500mm, 1550mm;

Plate length: 2500mm, 3200mm, 4000mm;

Customizable colors.


Product advantages and features:

1. Excellent flatness and rigidity;

2. Design flexibility;

3. Light and easy to process;

4. High cost performance;

5. Class A2 non combustible material.

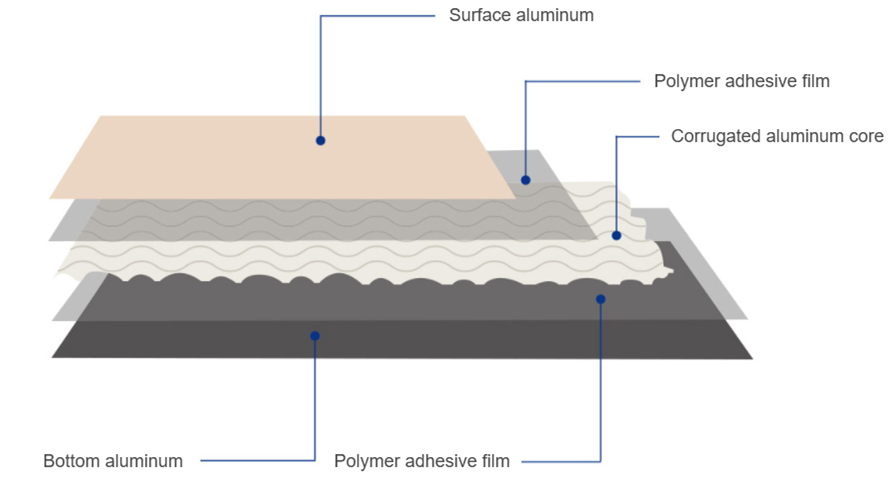

Physical and structural drawing of 3D aluminum composite plate:
