Since the first building with metal frame glass curtain wall in 1864, such facade system has become more and more popular!
It is estimated that the global aluminum curtain wall market will reach US $60 billion by 2026. Because the curtain wall is a non-structural peripheral protection system, with good plastic aluminum profiles and high transmittance glass, it has become the mainstream trend of curtain wall for many years. However, with the continuous upgrading of the concept of "low carbon, green and environmental protection", human research and exploration on curtain wall design, construction and materials have never stopped.
In 2023, what kind of panel material will lead the development trend of curtain wall?
▲Oriel Chambers (the first metal frame glass curtain wall)
01·More complex shapes
With the progress of technology, more curved, special-shaped and inclined curtain wall designs are presented in real life. The building curtain wall is also more eye-catching and unique, but the special-shaped curtain wall cannot be separated from the support of special-shaped materials:
Metal
Because of the material properties of metal, it can well adapt to more complex curtain wall shapes.
Double curved aluminum plate:
Hyperbolic aluminum panel or a kind of aluminum veneer to form hyperbolic profile through factory prefabrication is a sophisticated technology in the field of aluminum panel curtain wall, which has excellent performance in both large public buildings and small single buildings.
产品规格:Product specification:
Specification of conventional flat plate: 600 * 1200mm, 600 * 1500mm, 1000 * 2000mm, etc;
Maximum plate size: 1200 * 2400mm (other larger sizes can be welded);
Conventional thickness: 2.0-3.0mm;
Maximum thickness: 5.0mm;
Material properties:
1. It has the same high-quality performance as aluminum veneer, with light weight, good rigidity, dust and moisture prevention, fire and wear resistance, and long service life;
2. The surface texture and color can be varied, and the decoration effect is good;
3. The shape is changeable, showing the beauty of the design curve;
4. Humanized structure design, convenient loading and unloading, easy installation and construction;
5. It is convenient to repair and replace, and can be changed into strong shape;
6. The temperature stress is small, and other materials such as glass, metal and stone are connected with the frame body with flexible materials, which can reduce the temperature stress caused by temperature changes on the structure.
▼"Ice Ribbon" of National Speed Skating Hall
▼Hohhot Hailar Airport
▼Shaoxing Jinchang, Yanbo Flying Heron
It can also make hyperbolic metal curtain wall and hyperbolic honeycomb aluminum plate. The hyperbolic stainless steel and so on will not be described too much here, and a "soft" metal curtain wall can also bring a refreshing facade effect.
Metal mesh curtain:
Metal curtain, also known as metal bead curtain, metal cloth is a new modern decorative material made of high-quality stainless steel, aluminum magnesium alloy wire, brass, carbon steel and other alloy materials.
In the past, metal mesh curtain was usually used in interior and landscape, but the application of metal mesh curtain in facade curtain wall would bring unexpected effects.
▼Guobin No.1 Courtyard
▼Vienna University of Economics and Business, Austria
▼Headquarters building of the Netherlands Building Association
▼Equipment of Gharfa Experimental Exhibition Hall, Saudi Arabia
Glass
In building curtain walls, metal and glass have always been inseparable curved glass. As the name implies, curved glass is easy to make glass into curved surface and bend glass into curved surface, but how to install large-format glass on the facade is the challenge of curved glass curtain wall.
▼Ullens Contemporary Art Center (UCCA)
During installation, a pair of edge lines at the upper and lower ends of the glass shall be fitted with the glass to fix two stainless steel profiles. The four corners of the glass are designed to be cut off, so one of the stainless steel profiles is used as the beam connection support.
▼Renovation of Paris Martha Lidan Department Store
▼Hong Kong K11 Art Museum
There are 475 glass tubes in the project facade, each of which is 9 meters high and weighs up to two tons.
▼ new store in Ginza, Tokyo
The new LV store in Ginza, Tokyo, has a hyperboloid glass+hallucinogenic film water-light facade, which not only stands out in the block, but also shows the brand temperament.
Cement
When it comes to special-shaped curtain wall GRC, it has to be mentioned that GRC (glass fiber reinforced concrete) glass fiber reinforced concrete, abbreviated as GRC, is a lightweight, high-strength, high-tenacity and multi-functional inorganic composite material made of alkali-resistant glass fiber as reinforcement, sulphoaluminate low-alkalinity cement as binder and mixed with appropriate aggregates to form the base material through spraying, mold casting, extrusion, slurry flow and other production processes.
▼Boulder Art Museum, Los Angeles
▼Tel Aviv Art Museum
Stone
As the name implies, soft stone is a kind of flexible stone-like material, which is made of renewable and environmentally friendly active soil. The thickness of the finished product is only 2-3mm, and the texture is flexible. It can perfectly decorate various curved shapes. It is also easy to pave and paste irregular shapes, with a minimum radius of 200mm.
▼Hong Kong Land Chongqing Guanchen
02·Higher energy saving performance
As the world becomes more aware of the need for global warming and energy conservation, and as China's "double carbon" goal requires more and more energy efficient curtain walls with lower U value and more effective thermal insulation.
Glass

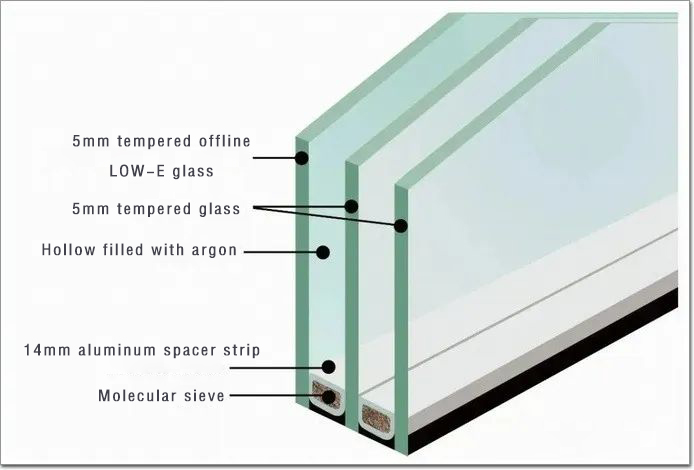

Low-e glass
Low-e glass, also known as low-radiation glass, is a kind of film product composed of multi-layer metal or other compounds coated on the glass surface. Generally, there are single-layer, double-layer and three-layer hollow Low-e glass, which has excellent heat insulation effect and good light transmittance compared with traditional glass.
▼Beijing Lize SOHO
▼Low-e glass is widely used in residential buildings
▲Hangzhou Green City, Phoenix Rising and Tide Singing
▲Haikou OCT · Xihai Coast
Vacuum glass
Vacuum glass is a new type of glass deep-processing product. It is a structure of vacuum glass developed based on the principle of vacuum flask. Similar to insulating glass, the difference is that the gas in the vacuum glass cavity is very thin, almost close to vacuum, and has better heat preservation and noise reduction functions.
03·Sunshade reduces solar gain
With the large area of glass in many exterior walls today, the potential problem of solar energy gain comes with it. In order to avoid the need for expensive air conditioners, the importance of shading the facade is self-evident.
External facade sunshade shutter
The building facade louver, as a common form of facade shading, can maximize the facade effect. The common materials used for sunshade are: aluminum plate, wood plate, ceramic plate and other aluminum-plastic composite plate/honeycomb aluminum plate. Aluminum-plastic composite plate and honeycomb aluminum plate are very common shading materials for exterior facades, with light weight and small compliance. Strong gloss. Compared with aluminum-plastic panel, honeycomb aluminum panel is more flat and has better fireproof performance.
High-temperature heat-curing wood fiber board is one of the greatest advantages of artificial decorative board. It overcomes the disadvantages of traditional natural materials such as instability and poor weather resistance, and saves and protects wood resources.
Ceramic plate
The ceramic plate uses natural clay as raw material and adds a small amount of quartz, pumice, feldspar, color and other ingredients. After a series of firing, the ceramic products are made of renewable materials. The dry hanging and installation keel of the ceramic plate curtain wall is less, the installation and replacement are convenient, and the shape is rich, and the weight is light, which can shape the texture and line sense.
04·Larger panel
In recent years, people's aesthetics tend to be simple, and the parting and structure of building curtain walls are also simplified. More and more seamless curtain walls have also verified this point. In addition to making every effort to hide the parting in the process, the structure shapes the curtain wall image of a larger overall panel. The strength and size of curtain wall materials are also breaking through.
Tempered laminated glass
Many glass processors are now able to produce oversized glass, which makes it possible to make larger glass panels. This can be combined with toughened glass, and then glued to the huge insulating glass unit. The curtain wall of Apple's flagship store, which is well known to all, uses super-sized subway ultra-white heat strengthened laminated glass.
▼Apple Hangzhou flagship store (14.5m high glass)
Stone
Stone is one of the oldest building materials, but limited by the processing method and raw material characteristics, the size of natural stone can not be very large, but there is a kind of artificial stone - clay guest stone, which can reach the maximum size of 1.8 * 2.7m. The clay guest stone is made by using cement as the main cementing material, selected quartz sand aggregate, inorganic pigment, fully mixed, and the waste material process. It breaks through the traditional organic resin material, does not contain organic materials, and can customize the texture.
▼Chongqing Vanke Jade City
▼Shenzhen Jindi Fenghui · Fengjing Ruifu
05·More transparent facade
In fact, our era is dominated by glass architecture. It is open, free, full of modern and artistic sense, and at the same time has strong plasticity. In addition to its ethereal temperament, it is often praised as the "fourth form of material". With the development of glass curtain wall, it becomes more and more clear and transparent.
Ultrawhite glass
Generally, glass contains a certain amount of iron, which will lead to different degrees of green visual effect. The content of ferrite in ultra-white glass is 10% or even lower than that of ordinary glass. With the appearance characteristics similar to colorless crystal, it can form a more transparent curtain wall effect.
▼Glass pyramid of the Louvre
▼Daxing Airport
A total of 12800 pieces of ultra-white glass are used in the terminal, and there is almost no need for lighting in the daytime.
▼Apple flagship store
06·High flatness glass
In modern glass curtain wall buildings, because the deformation of glass flatness is not well controlled, there are glass curtain walls with deformed images all over the street. By controlling the original glass sheet, tempered glass, hollow lamination, unit framing, construction accuracy and other methods, the problem of glass flatness can be well solved, especially to improve the flatness of tempered glass. At the same time, installation factors will also directly affect the flatness of the curtain wall.
07·Various composite and filler plates
Curtain wall materials are now more inclined to composite materials, filler materials and other composite materials, which have the advantages of various materials, such as rich effects, light weight, convenient installation, and can also have thermal insulation, fire protection and other functions.
Insulation integrated board

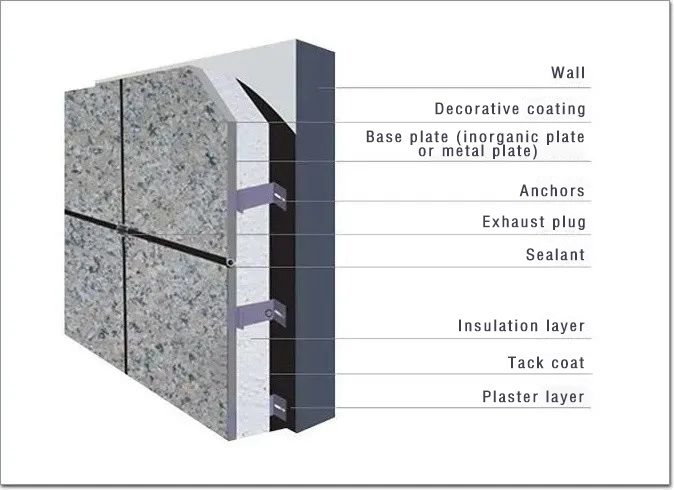

The heat preservation and decoration integrated board is also called the energy-saving heat preservation and decoration integrated board. It is mainly composed of thermal insulation layer, base plate, decorative coating bonding layer, anchor parts, sealing materials, etc., and is widely used in building exterior wall thermal insulation and decoration.
▼Nanjing World Trade City Products
▼Rizhao China Resources Land Plaza
08·PV building integration
Smart curtain wall technology began to appear, such as incorporating photovoltaic cells into glass curtain walls, which absorb solar energy in the daytime and emit light generated by stored electricity at night.
09·Dynamic curtain wall
Dynamic curtain wall can make the facade produce dynamic effects, especially the wind curtain wall makes use of natural phenomena. The interaction between wind and curtain wall makes the building surface produce dynamic effects, which can present many or countless expressions of beauty.
Pneumatic curtain wall
Wind curtain wall is also called wind bell curtain wall. Its principle is simply to use dynamic wind to simulate the effect of wind blowing. Its structure is relatively simple.
Usually, stainless steel cables are used to chain the metal pneumatic pieces to fix the unilateral limit of the pneumatic pieces, which can only move in one direction, making the wall float in the air, light, flexible, natural and smooth.
▼Brisbane Airport
10·Self-cleaning curtain wall
As the building becomes higher and higher, the cleaning and maintenance of the facade becomes more and more important and difficult, so the use of self-cleaning materials will become the trend of the use of curtain wall materials in the future.
Self-cleaning materials
KMEW photocatalyst ceramic plate, photocatalyst is a kind of nanometer titanium dioxide, which is the general name of photosemiconductor materials with photocatalytic function.
It is coated on the surface of the substrate under the action of ultraviolet and visible light, producing a strong catalytic degradation function. Therefore, the photocatalyst ceramic plate has the "dirt decomposition function", "air purification function", and the "super hydrophilic function" of using rainwater to wash dirt. In addition, the "high weather resistance" can inhibit the fading caused by ultraviolet light.
▼Hangzhou · Public toilets under the "big roof"
▼Chengdu Daoxiang Fishing Song
Self-cleaning glass
The glass surface is coated with a thin layer of transparent, strong hydrophilic and photocatalytic mineral material. In natural light, the glass will dissociate the organic dirt to form a hydrophilic surface, and then the rainwater will form a water film on the surface to wash the glass to remove the dissociated dirt and residual dust.
▼Hong Kong Land · Yijiang County
▼Jiunvfeng Study
Faced with the slowdown of real estate regulation and infrastructure construction, the upstream and downstream enterprises of the aluminum door and window curtain wall industry chain began to "survive the cold", the real estate "live" was the first word, and the construction industry "stable" was the first word. The door and window curtain wall industry ushered in a green and low-carbon "new" era. In such a "new" stage of high risk and low profit, there is no way out without innovation!
