Specification and standard of aluminum veneer

Views:638 Author:Site Editor Publish Time:2023-02-08 16:00:26 Orgin:Site

share

01·Width of aluminum plate

Conventional width of aluminum plate is 900-1300mm

(50 or 100 for each grade)

The maximum width is 2200mm

Roller coating plate 1930mm

Material exceeding 1300mm is ultra-wide plate

Extra wide board needs to be added

Increase one grade for every 100mm

The wider the board, the greater the price increase

The order cycle of ultra-wide plate will be extended

It usually takes 15-20 days or even longer.

02·Length of aluminum plate

Conventional length of aluminum plate is 4000mm

The maximum length shall not exceed 8000mm

If the length exceeds 4000mm, the price will be increased

Increase one grade every 1000mm

Ultra-long aluminum plate is inconvenient for transportation and loading and unloading

03·Product standard of aluminum veneer

national standard:

《Aluminum veneer for architectural decoration》

GB/T 23443-2009

《Metal and metal composite ceiling panels》

GB/T 23444-2009

Non-ferrous metal industry standards:

YS/T 429.2-2012《Industry Standards》

04·Paint film thickness

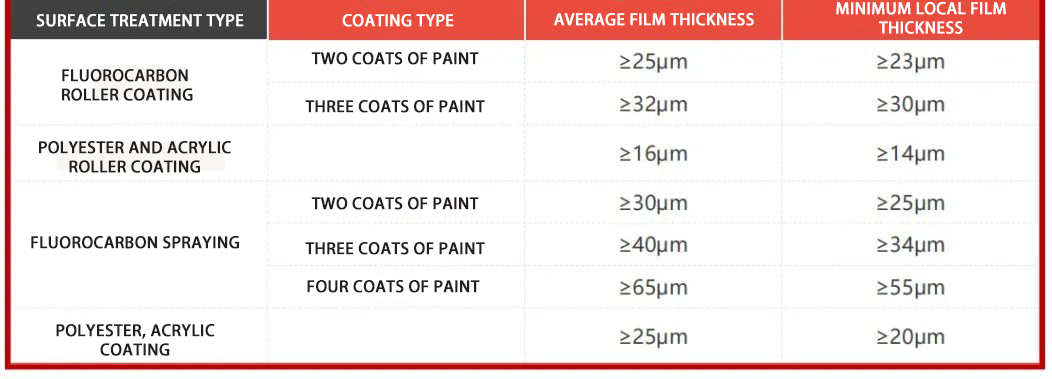

GB/T 23443-2009Paint Film Standard for Rolled Aluminum Sheet

As shown in the following table

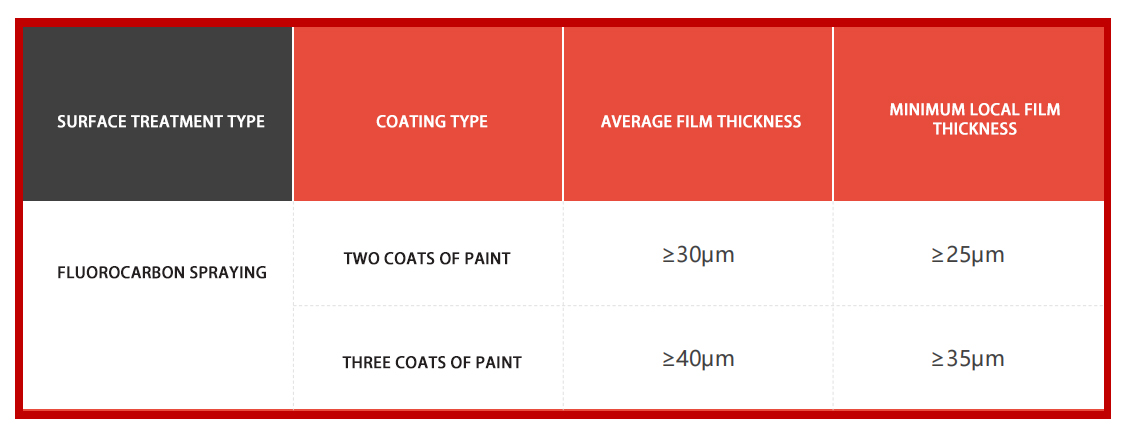

YS/T 429.2-2012 Standard for coating film without roller

Only spray paint film standard

And only fluorocarbon spraying

05·Dimensional deviation

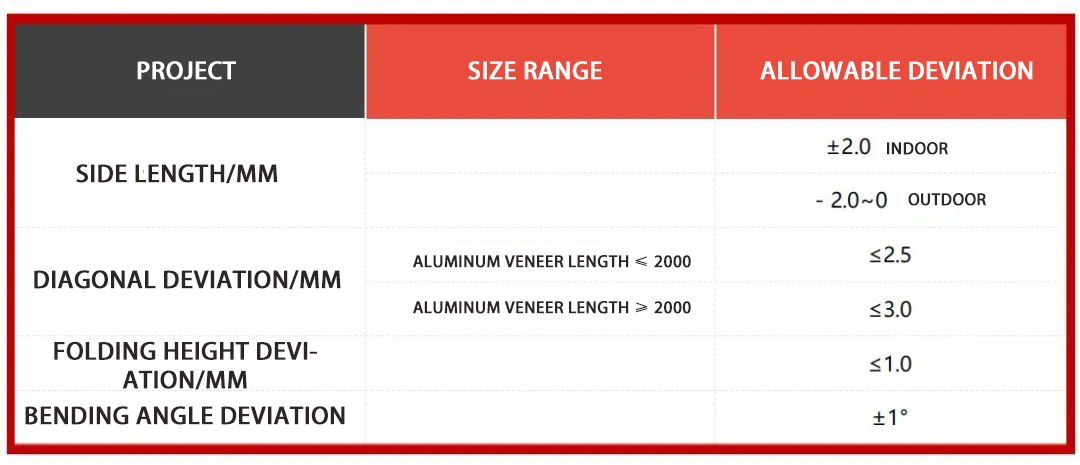

GB/T 23443-2009

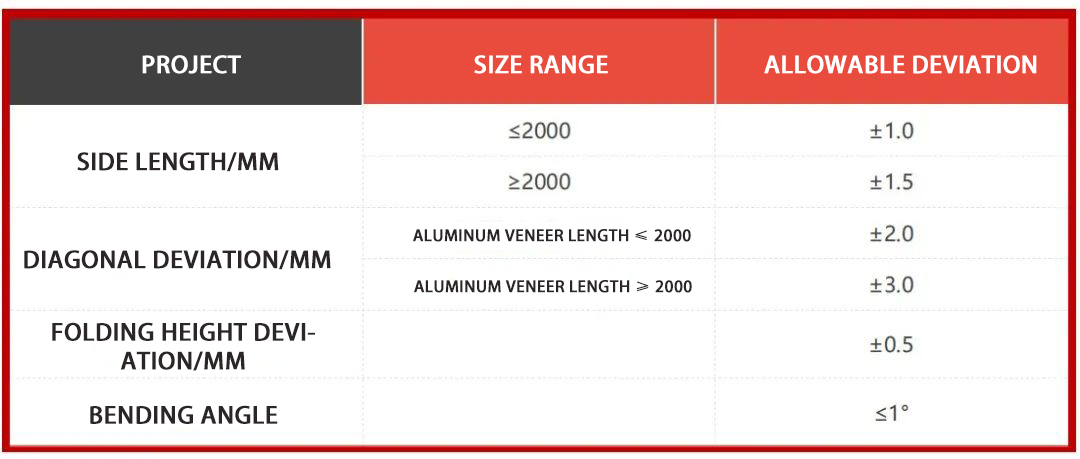

YS/T 429.2-2012

06·Base material standard of aluminum veneer

GB/T 3880.3-2012

《Aluminium and aluminium alloy plates and strips for general industrial use - Part 3: Dimensional deviations》

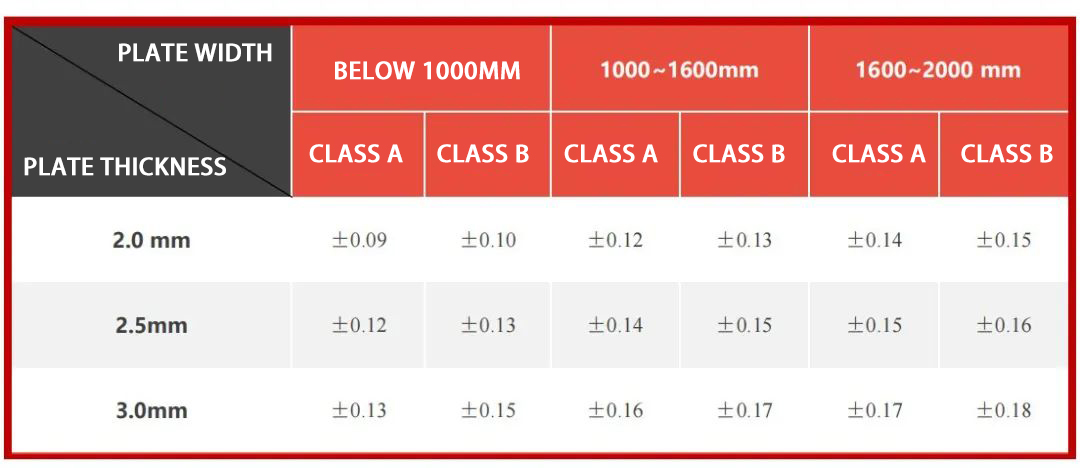

See the following table for the material thickness deviation
