Art Shaped Plate - Aesthetics in Waves

Views:529 Author:Site Editor Publish Time:2022-10-17 10:38:45 Orgin:Site
share



In recent years, wavy walls have become more and more popular in interior design space, and are common in many projects designed by masters.

The unique shape of aluminum wave plate has set off a new wave in the design circle, and has been favored by various masters. What charm does it have?


01· Material overview


Name: artistic profiled aluminum plate (corrugated aluminum plate)

Attribute: aluminum

Surface treatment: anodizing, spraying, wood grain transfer printing

Scope of application: wall/ceiling





The artistic profiled aluminum plate is not as straight and rigid as the ordinary aluminum plate. It has its unique dynamics. It combines different radians to form a wave effect, which can be applied to ceiling, wall body, exterior wall, background and other decorations.




02·Material overview


a. Light weight, good rigidity and high strength

The tensile strength is 100-280n/mm2.




b.Uniform veneer coating and various colors

The advanced electrostatic spraying technology makes the adhesion between the paint and the aluminum plate uniform, with various colors and large selection space.




c. Convenient and fast installation and construction

The aluminum plate is formed in the factory and fixed on the skeleton without cutting at the construction site.




d.Not easily defiled

The non adhesion of fluorocarbon coating film makes it difficult to attach pollutants to the surface, and it has better cleanliness.




e.Recyclable

Aluminum plate can be 100% recycled, which is different from glass, stone, ceramics, aluminum plastic plate and other aluminum clad brand decorative materials, with high recycling residual value.




03·Material specifications

Specification: width 100~250mm, length 6000mm, thickness 1.0~3.5mm

Market price of finished products: 600~1200 yuan/m2

Note: Prices will vary with different colors and shapes

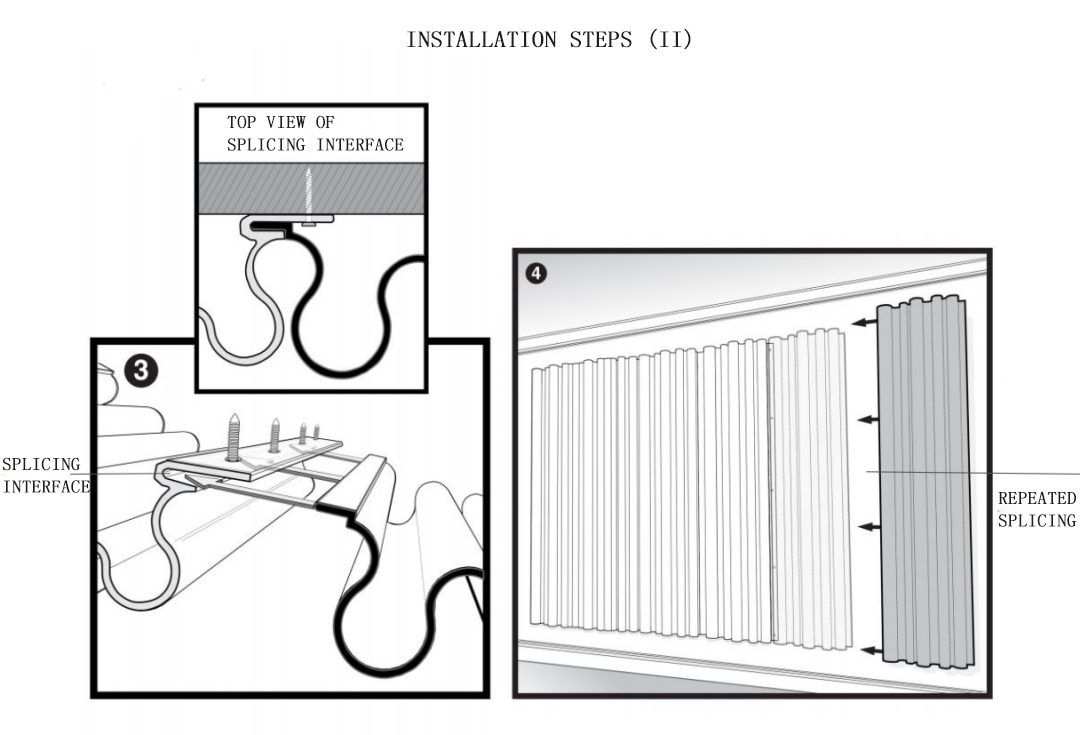

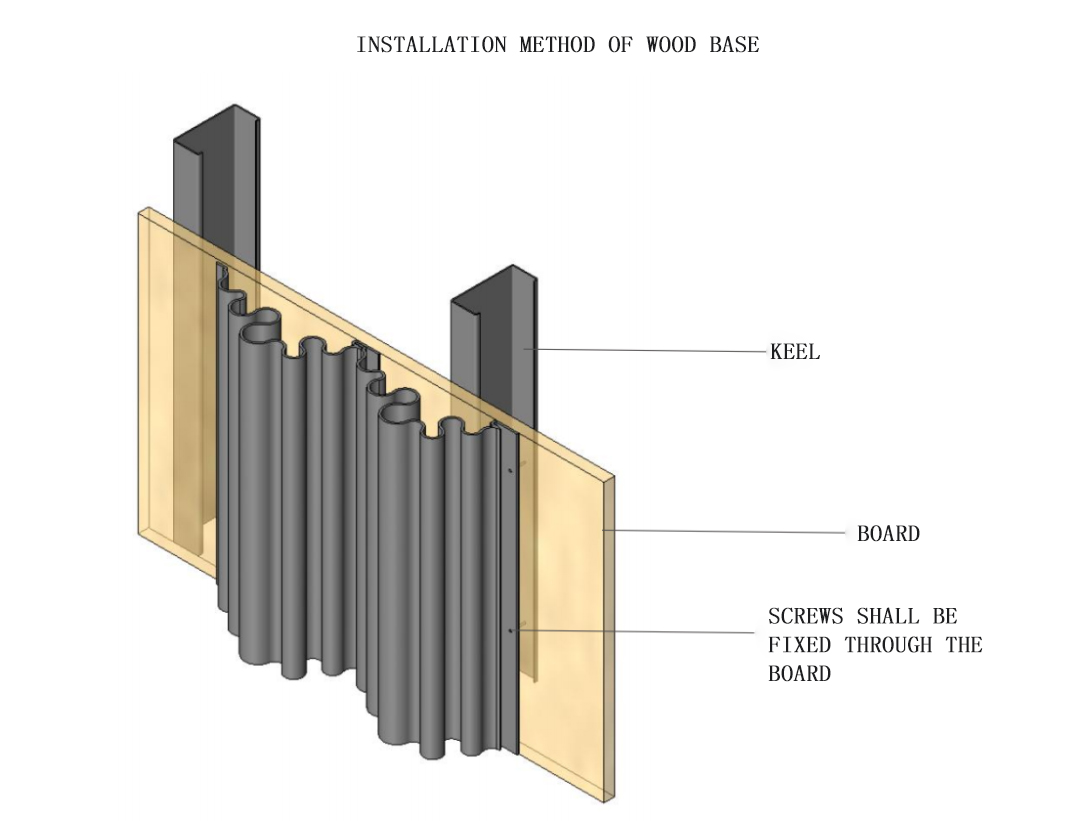

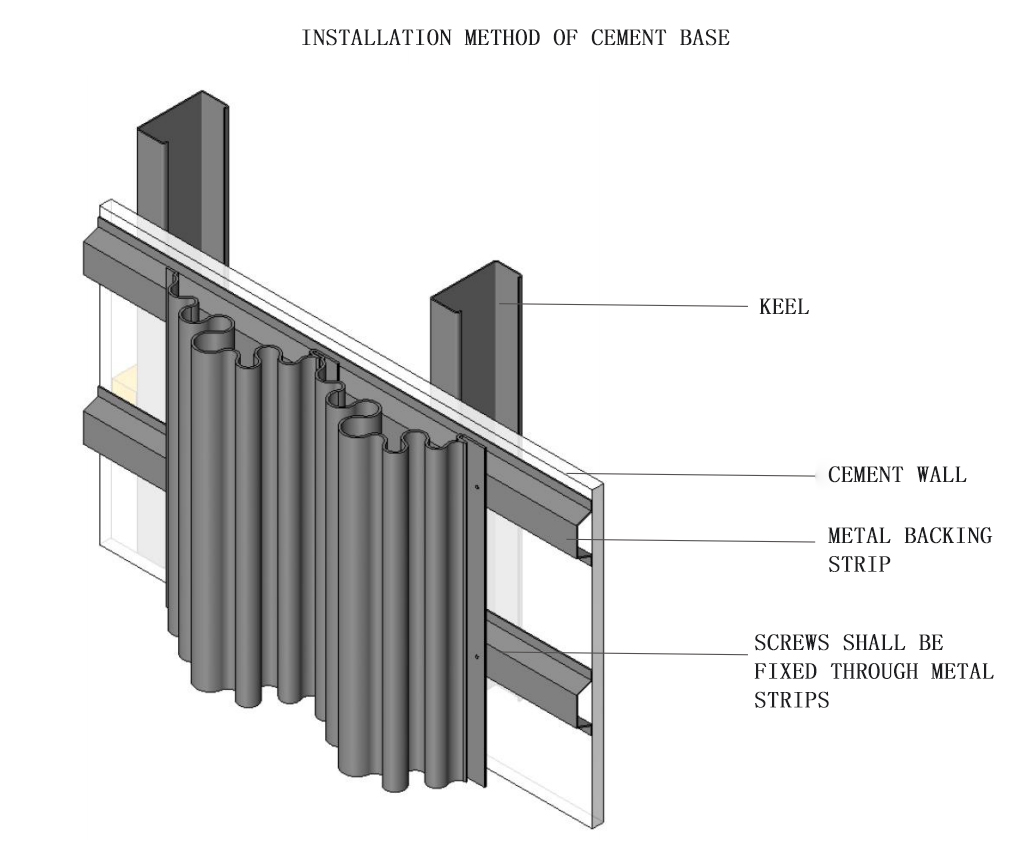

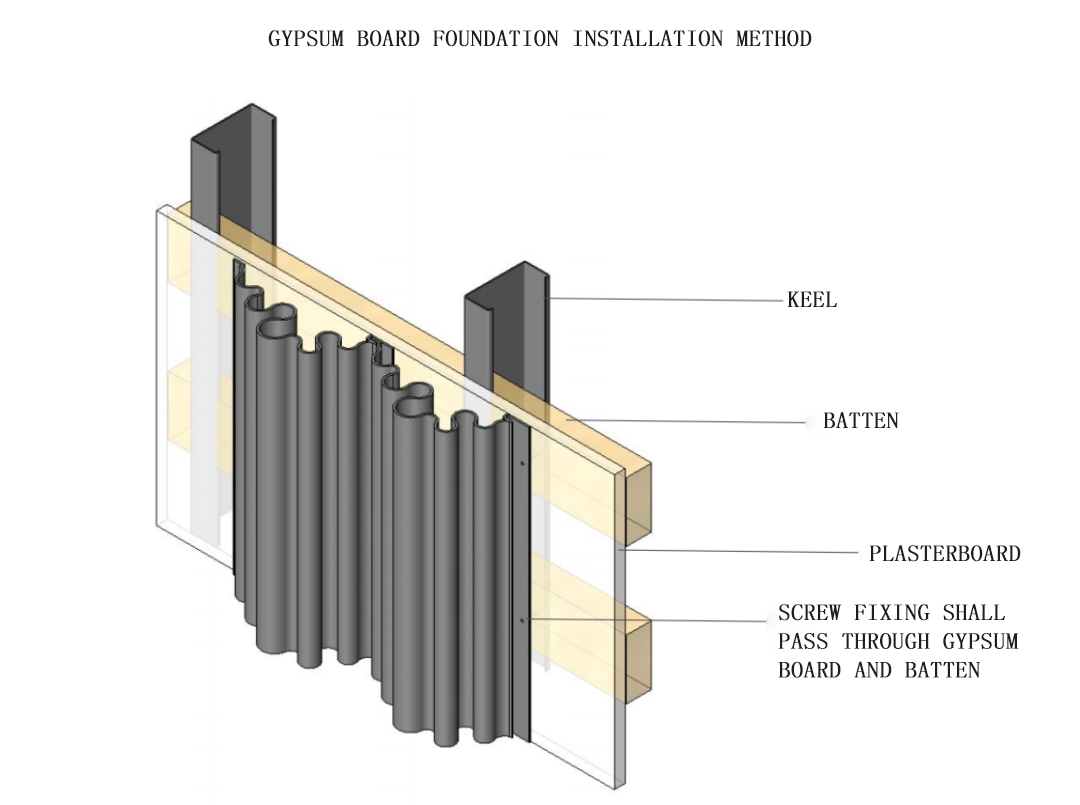

04·Construction technology










05·Application Cases


Swedish corrugated aluminum residence


Other cases


Data from the network
