I don't believe you've seen all these cool aluminum plates!

Views:528 Author:Site Editor Publish Time:2022-05-05 10:56:13 Orgin:Site

share

-  Aluminum plate  -

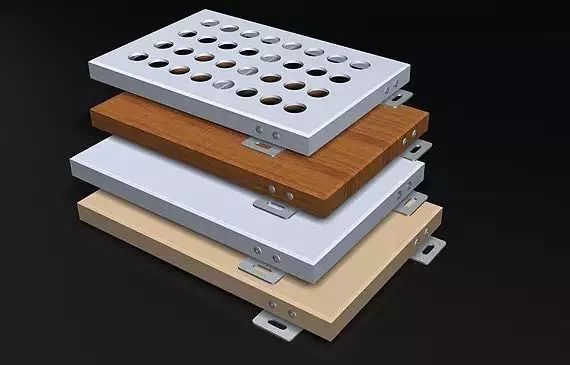

Aluminum plate, also known as aluminum veneer, is a new building decoration material formed by using aluminum alloy plate as the base material, chrome treatment, NC bending and other technologies, and fluorocarbon spraying technology. Because of its smooth surface, good weather resistance and easy cleaning, it is widely used as wall and roof materials in indoor and outdoor environments.

As a building material with a certain history, the application of aluminum veneer has developed rapidly in the industry because of its light material, good strength, easy processing and recyclability.

Nowadays, many designers are no longer limited to flat aluminum plates, and various fancy practices emerge one after another, which is an eye opener.

· 01 ·

Aluminum plate deformation

Are all the aluminum plates in your impression square? The "aluminum child" who knows how to change is more attractive. Say goodbye to the square and turn into a diamond by stretching. With a little change, you can win many eyes.

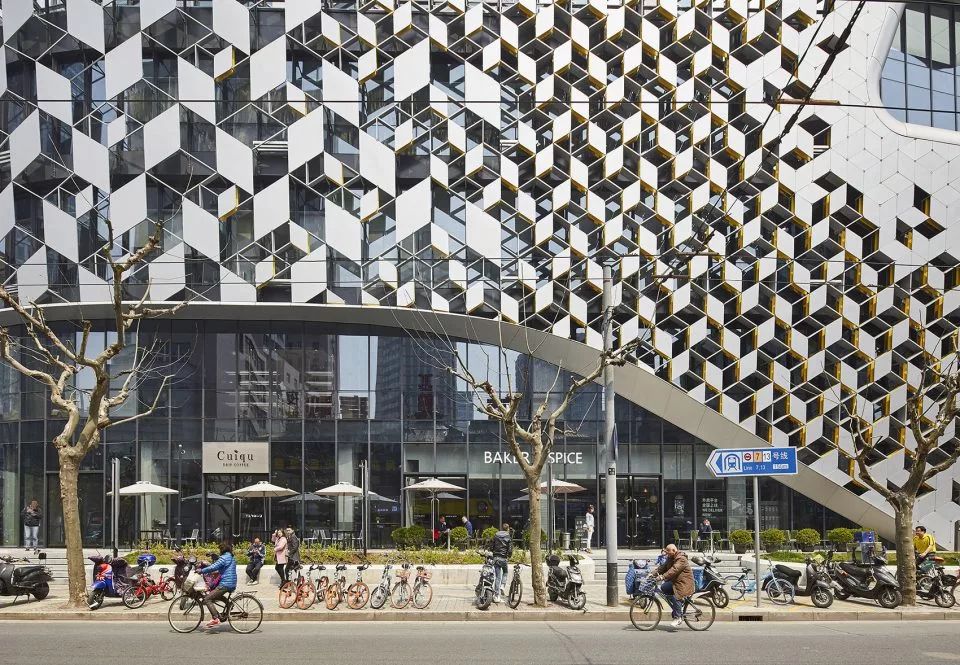

— Shanghai 189 Lane Shopping Center —

Through the geometric facade appearance, the elements of old Shanghai are abstracted and materialized into the design, and combined with the modern urban experience, a destination with the feeling of Shanghai culture is formed.

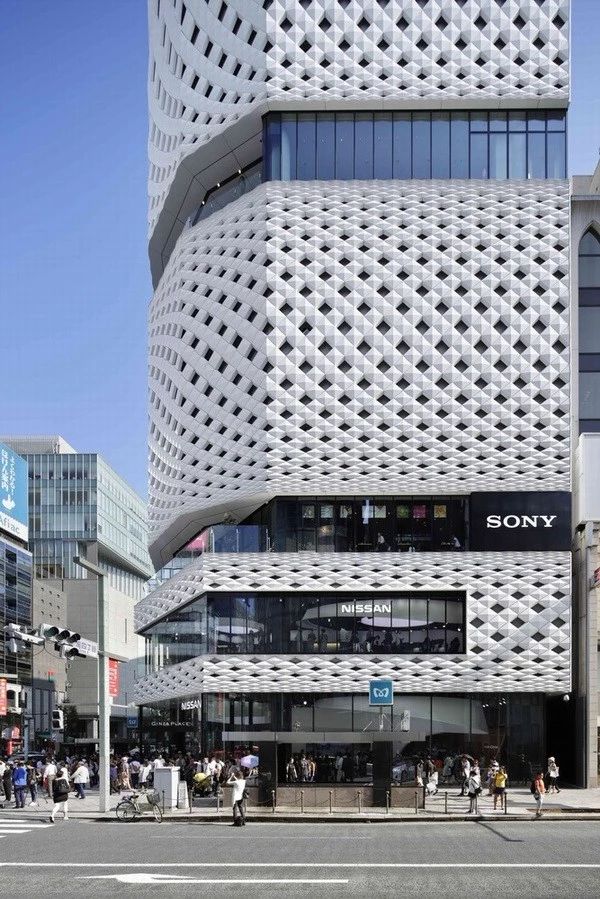

— Ginza Plaza, Tokyo —

The facade is inspired by sukashibori, an open grid found in traditional Japanese crafts. Usually used for small items, such as baskets or tableware. The flexible building skin is unevenly installed on the building, dividing the large facade into smaller elevations.

· 02 ·

Aluminum plate bending

The aluminum plate can enrich the expression of the building facade through bending, just like the fluctuating mood of the "aluminum child". Although it is unpredictable, it also becomes mysterious and more attractive.

— Shanghai Jing'an qicaili reconstruction project —

Cover the whole building with uniform, simple and pure perforated aluminum plate (considering the lighting demand of the building, light transmission is required), and adopt the form of all glass in the center of the entrance, so that the building can breathe freely and create the contrast between virtual and real.

Some friends may say that it's better to bend a little more. If you are far away, you can't see clearly. Don't worry, you have everything you want!

—  Siemens headquarters —

The peripheral protective structure of Siemens Middle East headquarters building can be regarded as "box in box". The inner layer is a highly insulated and sealed facade, which can effectively reduce the heat conductivity. The outer layer is a light aluminum shading system, which can provide the best care conditions and outdoor vision, and minimize the absorption of heat.

·03·

Aluminum plate weaving

In addition to the fine weaving effect, we can see the opening and closing effect.

—  Bristol Life Sciences building —

The building is designed as two side-by-side wing buildings. The shape design of the wing building facing west and East is obviously different. The solid aluminum plate and perforated aluminum plate surface are interspersed with each other, which coincides with the theme building of the concept of "life science".

—  Qingyun building —

For daylighting, aluminum mesh is suitable for ALC exterior wall, which can most effectively block sunlight like rattan baffle. 2mm thick aluminum plate is not used as load-bearing structure, and their curve can withstand the thermal expansion and cold contraction in summer and winter. The purpose of dividing these aluminum plates into blocks is to facilitate manual maintenance. All adjacent color differences contribute to partial replacement without distinguishing itself.

·04·

Honeycomb aluminum plate

The idea of aluminum honeycomb panel comes from natural hexagonal honeycomb. The typical sandwich structure is adopted, and the aluminum alloy plate with fluorocarbon coating is used as the panel and bottom. The corrosion-resistant aluminum honeycomb core is used as the intermediate aluminum honeycomb core, and the two-component high-temperature curing polyurethane is used as the adhesive, which is combined and cured by heating and pressure on the special composite production line.

— Dalian International Convention Center —

The shape of the building is irregular, and the overhanging part forms a rich space, which is closely related to the environment. The slit on the skin can ensure sufficient sunlight, line of sight and air into the theater and various spaces.

·05·

Aluminum plate spraying

Spraying is the most conventional and common way to realize the surface change of aluminum plate. Spraying is divided into fluorocarbon spraying and powder spraying. Compared with the two, fluorocarbon spraying belongs to high-grade spraying and has better characteristics.

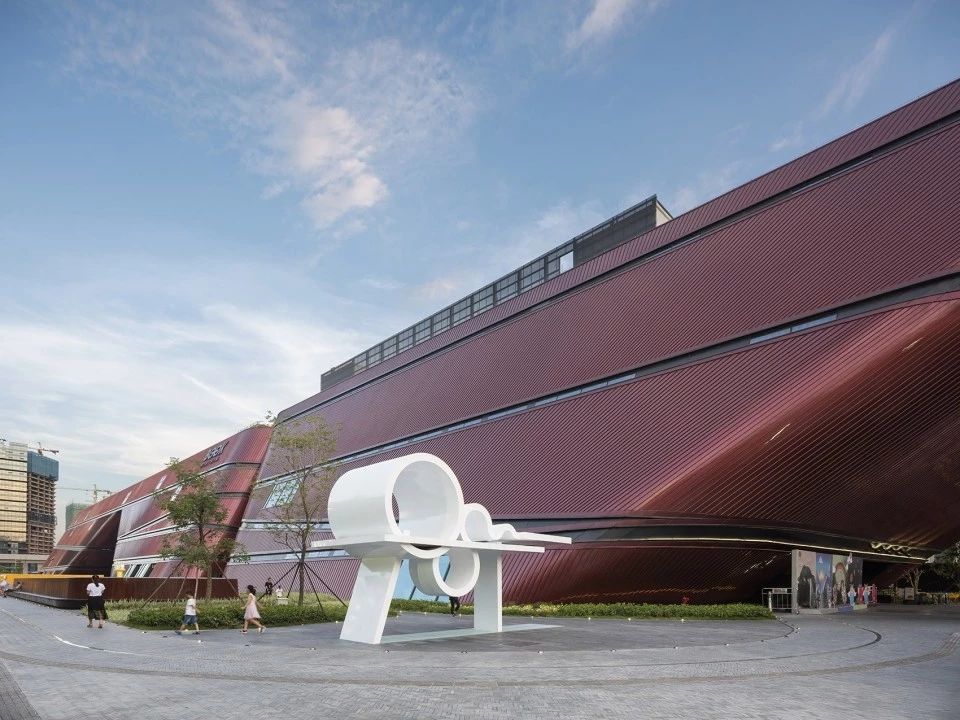

— Shenzhen Longgang three pavilions and one city —

Architectural forms move, squeeze and interact with each other, resulting in the "sense of terrain" echoed by the grand urban background. Reinforced concrete and GRC plus vertical locking aluminum plate curtain wall shall be adopted for the exit of corners and large slopes, which will naturally transition with the window opening.

The vertical locking plate used for the external walls of several individual buildings with different sizes is pre roll coated purplish red aluminum plate, 0.9 mm thick and about 330 mm wide. The dividing position is consistent with the concealed beam grid of the internal concrete.

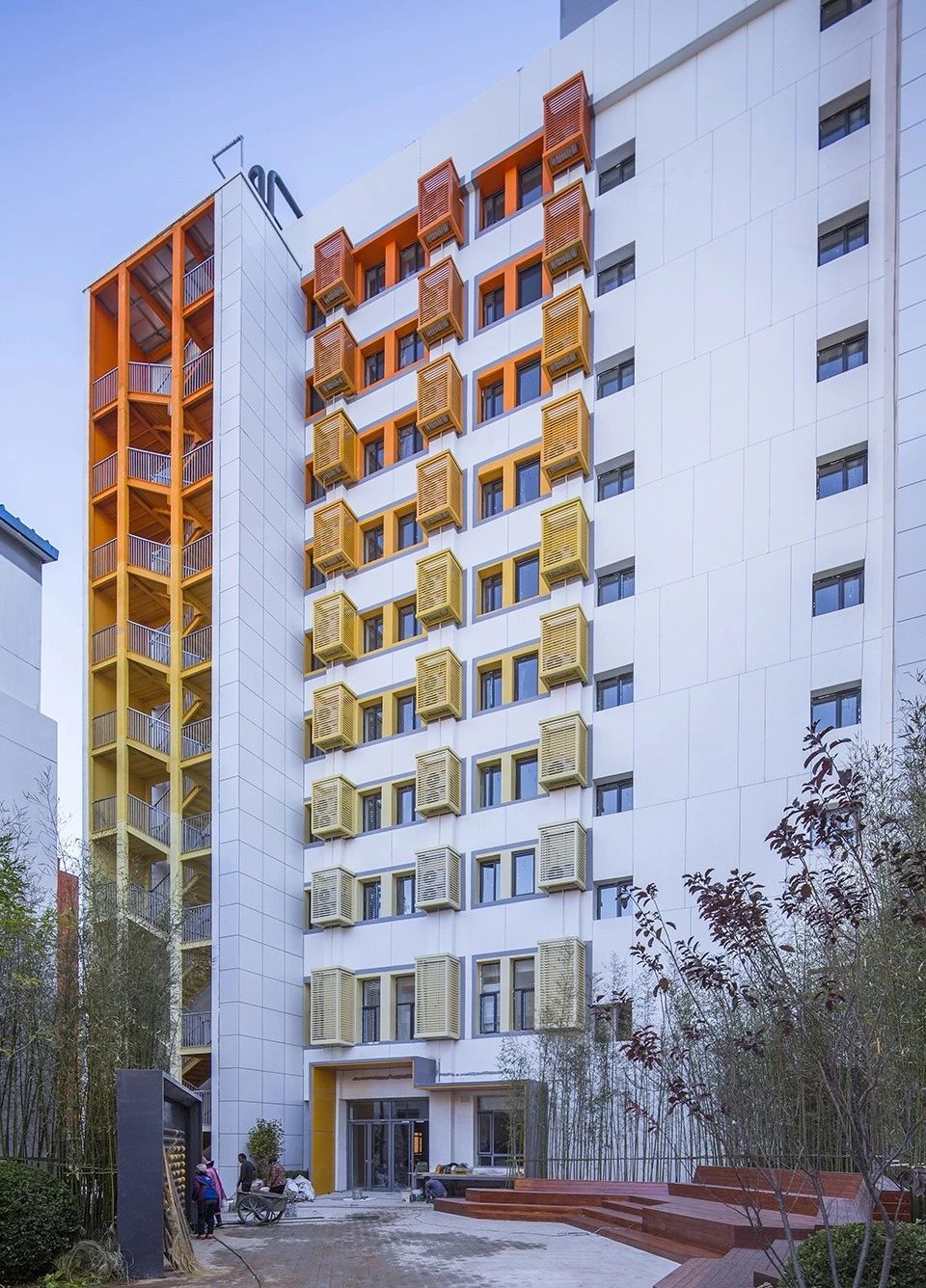

— Beijing Xizhimen Boyu —

Vivid colors bring facade expression and temperature.

For the placement of outdoor air-conditioning units in each room, the architect designed concave convex aluminum window covers on the facade.

The gradient of the inner side of the window cover from orange at the top to light yellow at the bottom is like the color spectrum of the lunar eclipse, and it is also like echoing the golden autumn in Beijing when it was opened. The gradient in the gray direction is used to balance the displacement of the center of gravity of the color change.

This paper is transferred from material online and network
