20 connection modes of aluminum profiles

Views:706 Author:Site Editor Publish Time:2022-03-29 10:58:42 Orgin:Site
share

In non-standard design, aluminum profiles are often used. After oxidation, the surface of industrial aluminum profiles has a very beautiful appearance. When assembled into products, special aluminum profile accessories are used, which does not need welding, is more environmentally friendly, and is very convenient for installation, disassembly, carrying and moving.

The connection modes of aluminum profiles are also diversified. The following briefly introduces 20 connection modes of aluminum profiles, which are demonstrated in the form of dynamic diagram, which is more intuitive.



1.Built in connector

Used for 90 º connection of two profiles, hidden connection, high connection strength.






Intermediate connection mode:





2.Corner code (90 º, 45 º, 135 º)

There are three kinds of connection angles: 45 º and 135 º, which can be used for external sealing.






Die cast angle aluminum right angle connection:





Extruded angle aluminum right angle connection:

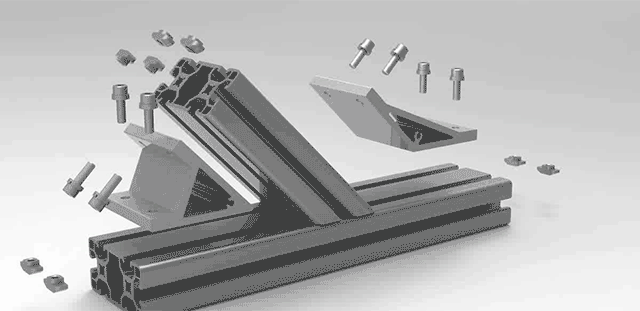

45 º, 135 º connection:




3.Screw connection

It is used for 90 º internal connection of two profiles. It is easy to install and disassemble. It is often used for simple profile cover connection.





Different styles of screw connection:




4. L-shaped corner groove connector (90 º)

It is used for 90 º connection of two profiles, with simple installation and disassembly, and profiles do not need to be processed.





5.High strength corner groove connector (45 º)

It is used to connect two 45 º angle profiles in the corner groove with high strength. It is often used to fix the door frame profiles.





6.End connector

It is used for right angle connection between two or three profiles, which is firm and beautiful.



7.Three dimensional connector (right angle)

It is used for right angle connection between three profiles, which is convenient and fast.



8.Three dimensional connector (R angle)

It is used for right angle connection between three arc-shaped profiles, which is convenient and fast.



9.Elastic fastener

It is used for 90 º internal connection of two profiles, which is convenient for installation and disassembly.




10.End connector

It is used for 90 º internal connection of two profiles, hidden connection and high connection strength.




11.Straight line connector

It is used for high-strength pair connection of two profiles.





12.Anchor connection

It is used for the connection of two profiles. Various angles can be selected. The hidden connection is convenient for profile installation.





13.Living hinge

For the connection of two profiles, 30 º - 150 º can be adjusted arbitrarily.





14.Steering connecting plate

It is used for connecting various profiles and can rotate at multiple angles.





15.Connecting plate

It is used for the connection of multiple profiles, with high connection strength, no processing of profiles and convenient installation.





16.Steering angle code

It can realize the connection of profiles at any angle.






17.Bolt head assembly

Install the elastic nut into the profile, install the circular column into another profile, and fix it with bolts.






18.Cross shaped connecting plate

It is used for high-strength connection of "+" structure of single slot profile.





19.L-type, T-type - external connecting plate

It is used for high-strength connection of single groove profile "L" or "t" structure.






20Y-type - external connecting plate

It is used for high-strength connection of single groove profile "-" structure.
